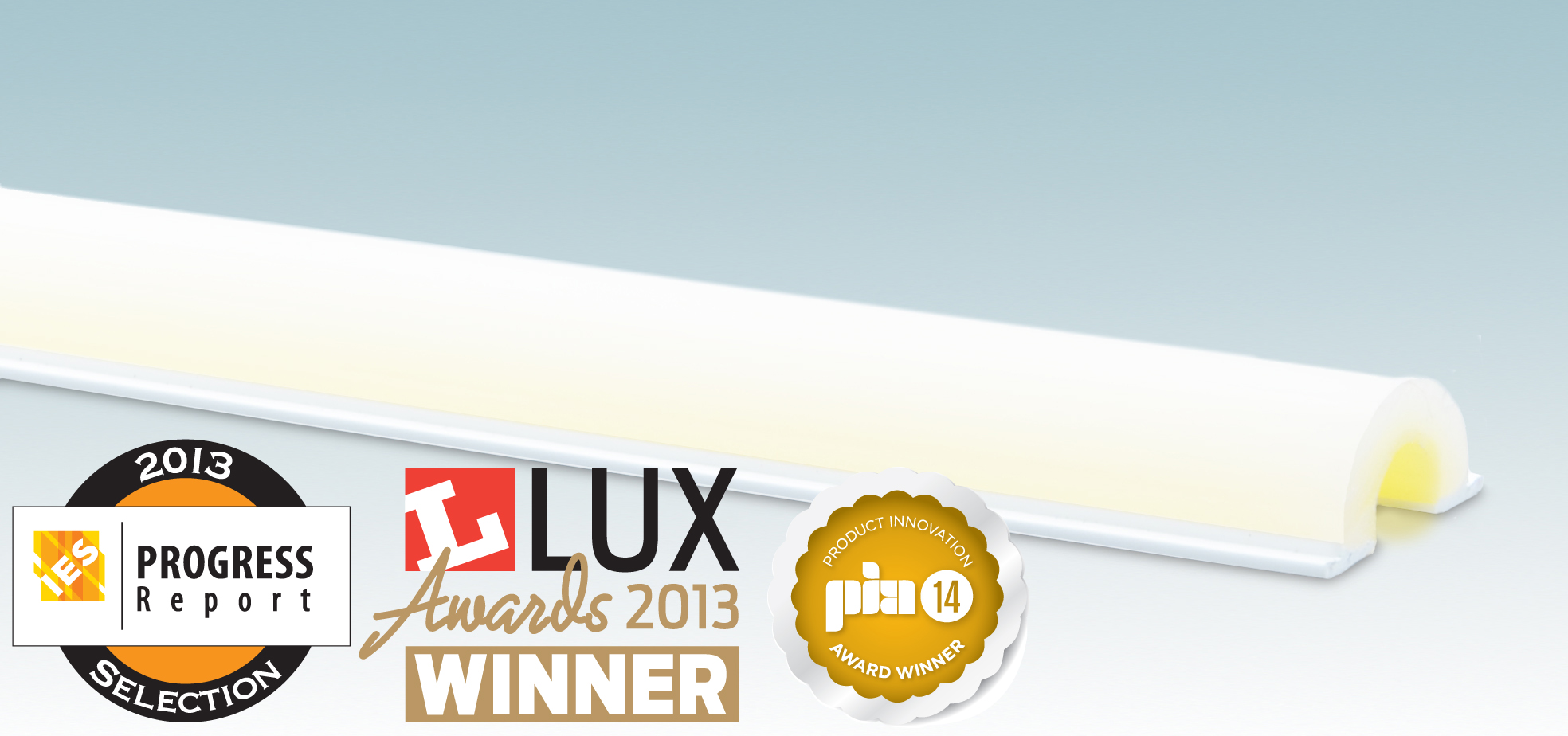

ChromaLit Linear

ChromaLit Linear enables new and creative designs for high lumen area and decorative lighting systems. Combining the benefits of remote phosphor with a unique delivery system. ChromaLit Linear delivers the uniform, glare free, color consistent lighting associated with remote phosphor systems with the additional benefit of a clean and familiar off state white appearance.

Unlike many linear LED solutions which may be limited to low lumen decorative lighting applications, ChromaLit Linear delivers the light density required to displace high wattage fluorescent tubes for commercial area lighting. The remote phosphor architecture reduces system costs and increases efficacy compared to conventional LED designs while delivering superior light quality and consistency.

Product Features

  • High flux density linear profile capable of up to 2500 lumens per foot with unlimited length possibilities
  • Diffuse and uniform emission pattern
  • Sleek profile with white exterior finish
  • 3 SDCM color consistency
  • Up to 30% higher system efficacy compared to white LED solutions
  • CCT options from 2700K to 5000K with minimum 80 or 90 CRI

Application Benefits

  • Enables new design options for functional and decorative  lighting applications
  • Glare free non-pixelated lighting
  • New shallow depth design potential
  • Uniform consistent lighting
  • Increased energy savings and lower total cost of ownership
  • Supports broad market requirements for high quality lighting with improved inventory management

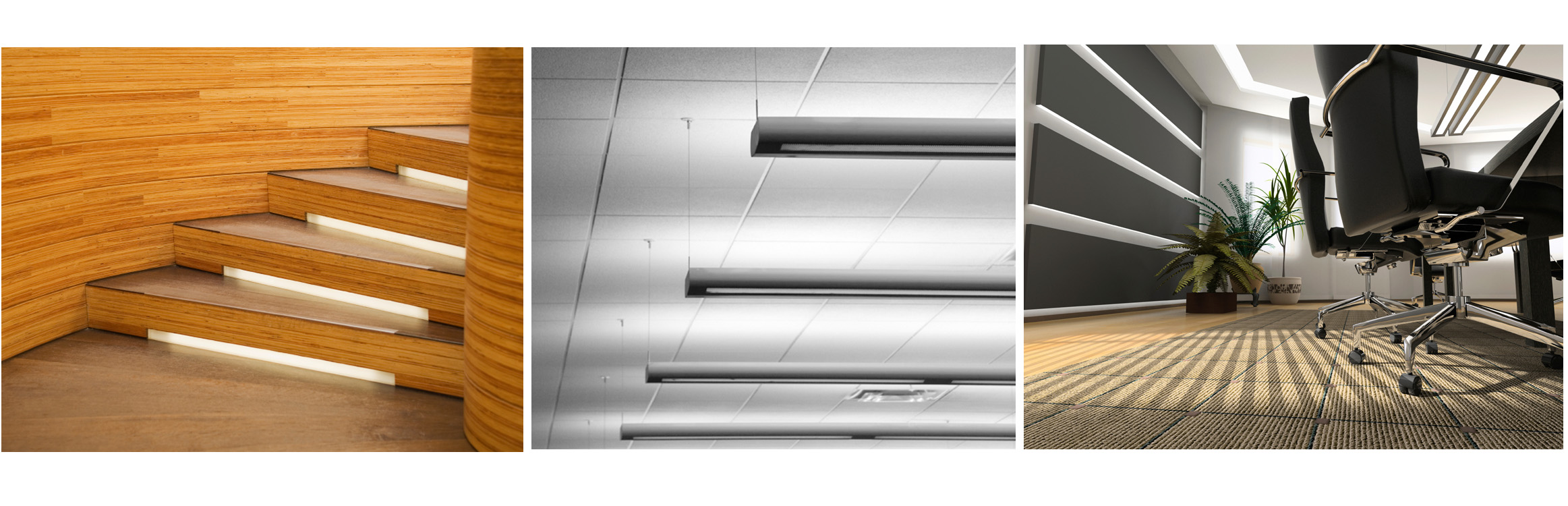

Application & Uses

  • Troffers
  • Mid and high bay fixtures
  • Task and undercabinet fixtures
  • Cove lighting
  • Architectural lights



Optical Characteristics

For use with Blue Pump LEDs

Product
CCT (K) Color Consistency (SDCM) Min CRI Type CE (lm/Wrad)
CL-927-LIN01-PC0 2700 3 90 170
CL-830-LIN01-PC0 3000 3 80 210
CL-930-LIN01-PC0 3000 3 90 180
CL-835-LIN01-PC0 3500 3 80 215
CL-840-LIN01-PC0 4000 3 80 220
CL-850-LIN01-PC0 5000 4 80 220









Performance Characteristics

Product
CCT (K) Min CRI
Typ white lumens per foot (lm) Max white lumens per foot (lm)
CL-927-LIN01-PC0 2700 90 970 2040
CL-830-LIN01-PC0 3000 80 1140 2520
CL-930-LIN01-PC0 3000 90 1030 2160
CL-835-LIN01-PC0 3500 80 1170 2580
CL-840-LIN01-PC0 4000 80 1200 2640
CL-850-LIN01-PC0 5000 80 1225 2640









Samples of ChromaLit Linear are available now from Intematix and production quantities are available with standard lead times. If you are interested in sampling the new product, or looking for more information, please contact your sales representative, or contact us directly at [email protected].

You may also contact our distributors Arrow Electronics or Future Electronics for more information about the ChromaLit Linear.
